Product Description |
Yanmar Industrial Diesel Engine 3TNV88 Water Cooled Diesel Engine
Building off the proven TNE design, this engine made by YANMAR has achieved superior exhaust emissions by improving the combustion chamber and fuel injection equipment design. Engines are compliant with 2008 EPA Tier 3 and EU stage III A exhaust emissions regulations.
The TNV engines now proudly take up the running of YANMAR’s premium small industrial diesel. They offer even more enhanced durability due to better block cooling, a stiffer crank and pistons, finer tolerance in the journal, and more. CAE analysis has brought lower vibrations and higher strength to the mounting structure for even better reliability in heavy-duty jobs.
Yanmar Industrial Diesel Engine 3TNV88 water Cooled Diesel Engine application
Application: Small tractors, air compressors, mini excavators, skid-steer loaders, ride-on mowers, and a wide range of other applications in the agricultural, lawn and garden, construction, and materials handling industries.
Yanmar Industrial Diesel Engine 3TNV88 water Cooled Diesel Engine Specification
Type | 3 Cylinder, 4-Cycle, Liquid-Cooled Diesel Engine |
Bore | 88 mm |
Stroke | 90 mm |
Displacement | 1.642 L |
Aspiration | Naturally Aspirated |
Combustion System | Direct Injection |
Rotation (from flywheel end) | Counterclockwise |
Dry Weight | 326 lbs (148 kg) |
Number of Cylinders | 3 |
Rated Output | 35.9 |
Fuel Delivery and Economy
A newly designed, in-line ML type fuel injector pump is utilized to assure more precise fuel delivery and control. The result is reduced emissions, improved performance over a wide range of applications and good fuel economy which assures of YANMAR’s reputation for superior starting characteristics continues.
Noise Level Reduction
original CAE techniques have optimized the stiffness, minimized transformation, and reduced radiant noise in the cylinder block. Gear noise reduction is achieved through an improved gear tooth profile resulting in less mechanical noise.
Lubrication System
6.7 L Capacity Deep Oil Pan
Trochoid Oil Pump
Paper Element Oil Filter
Oil Pressure Switch
Crankcase Breather, Closed Type
Electrical System
12V, 40 Amp Alternator
12V Starter Motor
12V Super Quick Glow Plugs
Preheat Timer, 15 second (shipped loose)
Stop Solenoid Timer, 1 second (shipped loose)
Fuel System
Distributor-Type MP2 Fuel Injection Pump
12V Electric Fuel Pump (shipped loose)
Paper Element Fuel Filter
Water Separator (shipped loose)
Stop Solenoid, Integral to Fuel Injection Pump
Cooling System
Water Pump, Belt Driven
7-Blade, 360mm Cooling Fan—Puller Type
160ºF (71ºC) Thermostat
Temperature Switch
Fan Belt
Power Take-Off
Flywheel, SAE 7 1/2”
Flywheel Housing, SAE #5 t=124
Aux Drive, 9-tooth w/SAE 2 bolt “A” Flange

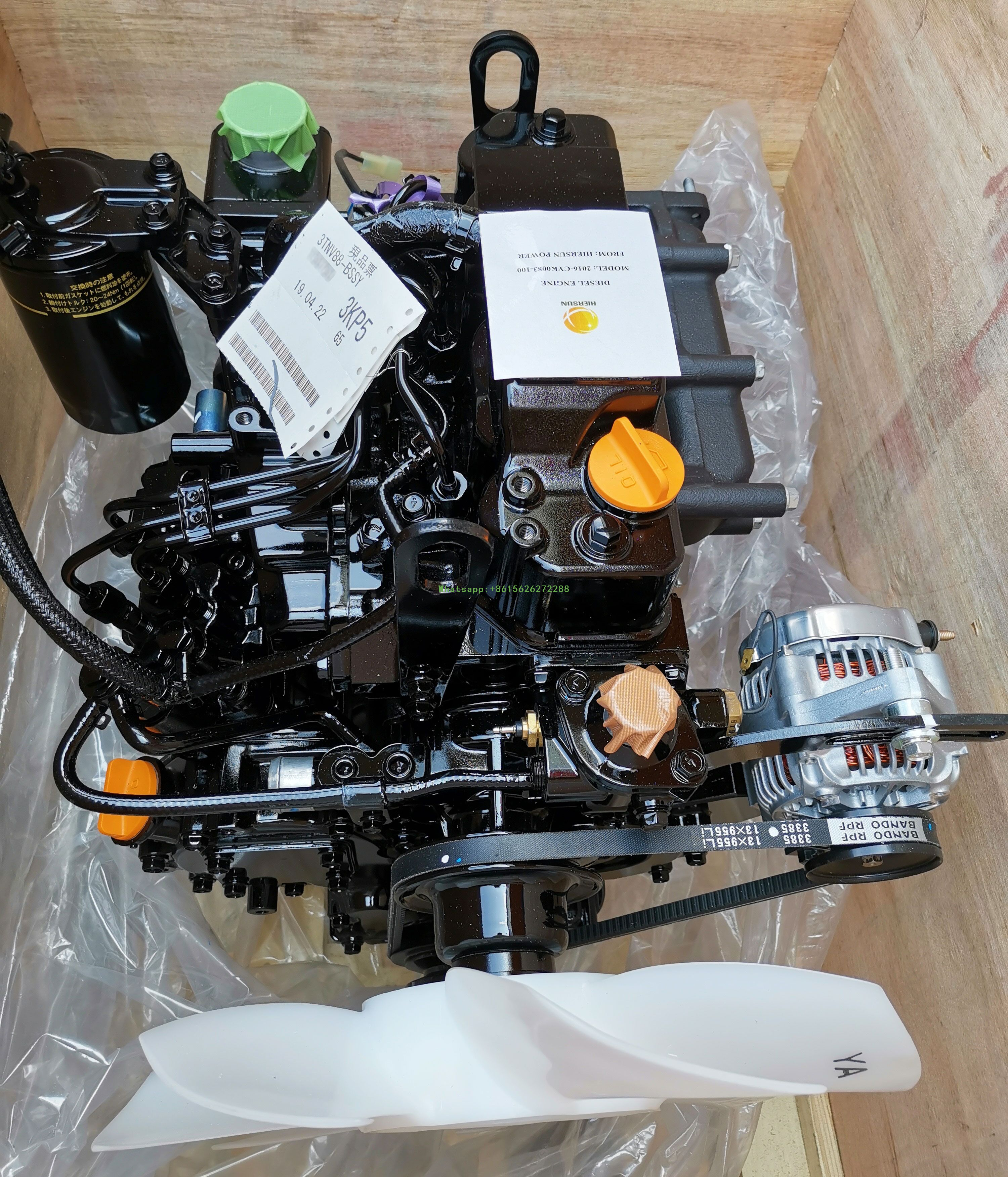

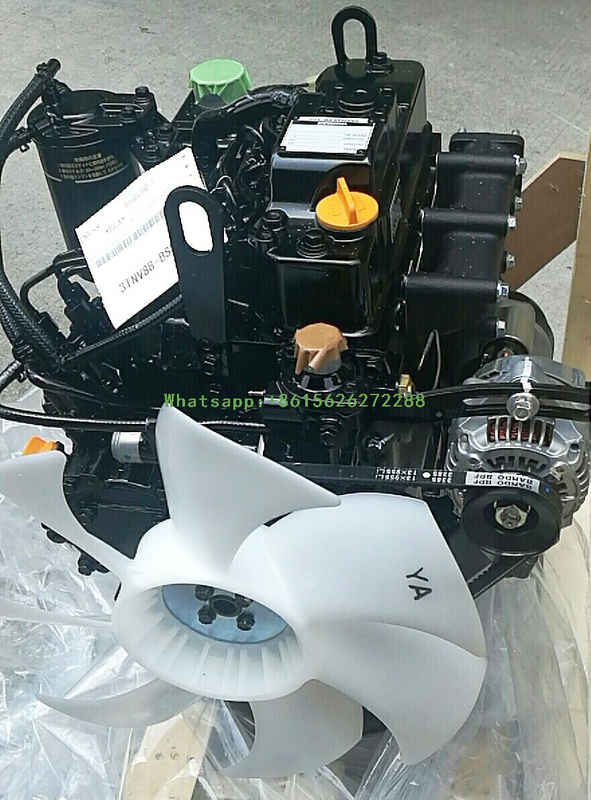

Yanmar Industrial Diesel Engine 3TNV88 water Cooled Diesel Engine Photo Reference
Packaging & Shipping |
Company Information |
Hiersun Group is a China professional manufacturer of diesel generator set, and we are committed to supply diesel generator powered by genuine Perkins, Perkins, Caterpillar, Daewoo, MTU, the engine power pack for oilfield, crane, pump and other construction field. We keep strengthen the supervision over the production and processing course, to establish and perfect the quality guarantee body, please follow us for more news of this industry.
Factory:
Certifications:
