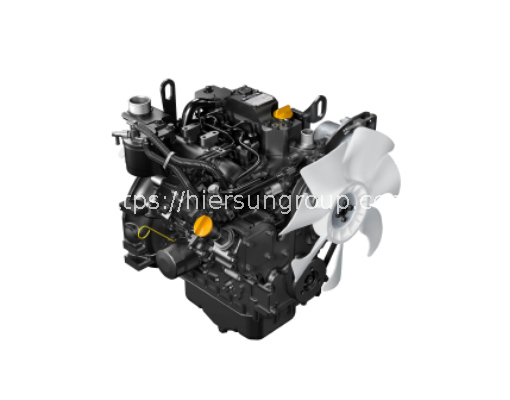

3TNV82A-GGE
3TNV82A-GGE
GENERATOR SET
Yanmar engines of the TNV series are a popular choice for diesel generator sets. These engines are known for their reliability, efficiency, and durability, making them ideal for use in a wide range of industrial and commercial applications.
The TNV series engines feature advanced combustion technology, which ensures that fuel is burned efficiently, reducing emissions and improving fuel economy. The engines also feature a direct injection system that delivers precise amounts of fuel to the combustion chamber, further improving performance and fuel efficiency.
Yanmar Engine of 3TNV82A-GGE The TNV Series for Diesel Generator Sets
| Models | 3TNV82A(-B) | ||
|---|---|---|---|
| Combustion | Direct injection (DI) | ||
| No. of Cylinders | 3 | ||
| Bore x Stroke | mm | Φ82 x 84 | |
| Displacement | liter | 1.331 | |
| Maximum Rated Output | Engine Speed | min-1(rpm) | 3000 |
| Output | kW[hp] | 21.9 [29.4] | |
| Dry mass (Back plate / Bell housing) | kg | 111 / 128 | |
| Dimensions | Length x Width x Height | mm | 528.5 x 498.5 x 561 |
Yanmar Engine The TNV Series for Diesel Generator Set line up
Model | Standby | Continuous | sound | Fuel Consumption | Displacemen | Weight | Size(mm) | ||||
3000rpm | 3600rpm | 3000rpm | 3600rpm | ||||||||
kW/hp | kW/hp | kW/hp | kW/hp | dB | g/kW*h//g/PS*h | litre | kg | L*W*H | |||
2TNV70-HGE | 8.5(11.6) | 10(13.6) | 7.7(10.5) | 9.1(12.4) | 85.5 | 318/234 | 0.57 | 84 | 417*433*533 | T4 | |
3TNM68-HGE | 12(16.3) | 14.2(19.3) | 10.9(14.8) | 12.9(17.5) | 87 | 299/220 | 0.784 | 104 | 538*421*566 | T4 | |
3TNV70-HGE | 13.3(18.1) | 16(21.8) | 12.1(16.5) | 14.5(19.7) | 87 | 306/225 | 0.854 | 115 | 547*430*577 | T4 | |
3TNM72-HGE | 14.5(19.7) | 17.5(23.8) | 13.2(17.9) | 15.9(21.6) | 88 | 299/220 | 0.904 | 110 | 556*425*563 | T4 | |
3TNV76-HGE | 16.5(22.4) | 19.5(26.5) | 15.1(20.5) | 17.7(24.1) | 91 | 306/225 | 1.116 | 124 | 567*437*601 | T4 | |
Standby | Continuous | Sound | Fuel Consumption | Displacemen | Weight | Size(mm) | |||||
1500rpm | 1800rpm | 1500rpm | 1800rpm | ||||||||
3TNV70-GGE | 6.7(9.1) | 8(10.9) | 6.1(8.3) | 7.3(9.9) | 80 | 272/200 | 0.854 | 115 | 545.7*427*547 | T4 | |
3TNM72-GGE | 7.3(9.9) | 8.6(11.7) | 6.6(9.0) | 7.8(10.6) | 80 | 265/195 | 0.904 | 110 | 556*425*542 | T4 | |
3TNV76-GGE | 9(12.2) | 10.7(14.5) | 8.2(11.1) | 9.8(13.3) | 80 | 258/190 | 1.116 | 123 | 567*437*573.8 | T4 | |
3TNV82A-GGE | 11(15) | 13.2(17.9) | 9.9(13.5) | 12(16.3) | 84.5 | 245/180 | 1.331 | 128 | 581*497*612 | T2 | |
3TNV84T-GGE | 15.6(21.5) | 18.8(25.6) | 14(19) | 16.5(22.4) | 85 | 245/180 | 1.496 | 161 | 599.6*510*699 | T2 | |
3TNV88-GGE | 13.2(17.9) | 16.2(22) | 12.2(16.6) | 14.7(20) | 86 | 245/180 | 1.642 | 155 | 600*513*654 | T2 | |
4TNV84T-GGE | 21(28.6) | 26.8(36.4) | 19.1(26) | 24.2(32.9) | 86 | 245/180 | 1.995 | 180 | 694*517.7*709.8 | T2 | |
4TNV88-GGE | 17.7(24.1) | 21.6(29.4) | 16.4(22.3) | 19.6(26.6) | 88 | 245/180 | 2.19 | 170 | 694*510*649 | T2 | |
4TNV98-GGE | 34. (46.4) | 40. (55. ) | 30. (41.7) | 36. (49. ) | 90 | 231/170 | 3. 19 | 248 | 763*532*742 | T2 | |
4TNV98T-GGE | 41.4(56.3) | 50.1(68.1) | 37.7(51.3) | 45.3(61.6) | 91 | 222/164 | 3.319 | 258 | 763.3*542.5*838 | T2 | |
4TNV106-GGE | 49.4(67.2) | 58.7(79.8) | 44.9(61) | 53.3(72.5) | 92 | 237.6/175 | 4.412 | 330 | 888*648*820 | T2 | |
4TNV106T-GGE | 56(76.1) | 66.9(91) | 50.9(69.2) | 60.9(82.8) | 92 | 220.4/162 | 4.412 | 355 | 890*628*869 | T2 | |
4TNV88-BGGE | 18(24.5) | 21.6(29.4) | 16.4(22.3) | 19.6(26.6) | 87.5 | 251/185 | 2.19 | 175 | 694*521*662 | T3 | |
4TNV84T-BGGE | 21(28.6) | 26.8(36.4) | 19.1(26) | 24.2(32.9) | 86 | 245/180 | 1.995 | 180 | 694*520*710 | T3 | |
4TNV98-ZGGE | 34.1(46.4) | 40.8(55.5) | 30.7(41.7) | 36.4(49.5) | NA | 234/172 | 3.319 | 245 | 763*550*742 | T3 | |
4TNV98T-ZGGE | 41.9(57) | 50.4(68.5) | 37.9(51.5) | 45.6(62) | 91 | 231/170 | 3.319 | 275 | 763*550*849 | T3 | |
3TNM74F-NGGE | NA | 8.6(11.7) | NA | 7.8(10.6) | NA | 265/195 | 0.993 | 98 | 547*430*577 | T4F | |
3TNV80F-NGGE | NA | 11(15) | NA | 10(13.6) | NA | 260/191 | 1.266 | 117 | 567*437*573.8 | T4F | |
3TNV88F-UGGE | NA | 15.1(20.5) | NA | 13.7(18.6) | NA | 242/179 | 1.642 | 155 | 600*520*670 | T4F | |
4TNV88-BIGE | 18.5 | NA | 17.2 | NA | NA | 237/175 | 2.19 | 175 | 694*521*662 | EURO5 | |
4TNV86CT-GGE | 23.2(31.5) | 27.7(37.6) | 21.1(28.7) | 25.2(34.3) | NA | 232 | 2.091 | 235 | 695*598*742 | EURO5&T4 | |
4TNV98C-GGE | 34.1(46.4) | 40.8(55.5) | 30.7(41.7) | 36.4(49.5) | NA | 227/172 | 3.319 | 290 | 764*632*809 | EURO5&T4 | |
4TNV98CT-GGE | 41.9(57) | 50.4(68.5) | 37.9(51.5) | 45.6(62) | NA | 231/170 | 3.319 | 300 | 764*632*809 | EURO5&T4 | |
