Perkins Engine Identification
What Perkins model do I have ?
Below is the information on how to identify your Perkins Engine to help you use our website. Engine serial numbers are usually found on a metal plate fixed to the engine block. The letters and numbers that make up an engine’s model number are a series of codes to tell you the engine family, the number of cylinders, the emissions standard, the type of ignition, the capacity, the type of aspiration and if relevant the generator set rating. All Perkins engines should contain one of the two following formats for engine identification and numbering.

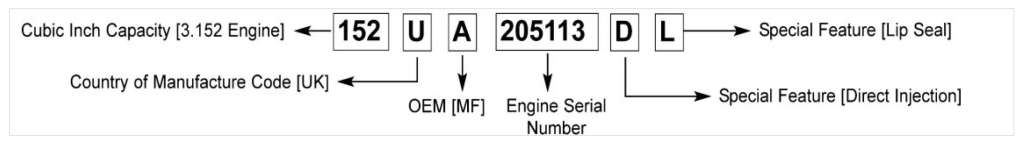

Pre 1978 Engine Numbers:
This system consists of a maximum of 13 digits, this was used from 1966-1978. Another numbering method was used prior to 1966, which utilized a digit number with no reference to engine series.
Current (post 1978) Engine Numbers:

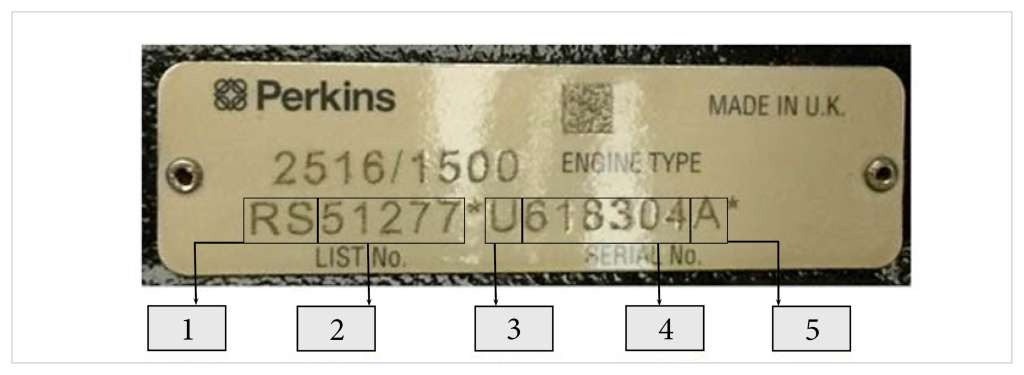

Locate your engine number:
Identify your engine type:
| 1 | 2 | 3 | 4 | 5 |
RS: is the family engine, in this case it is 1104A-44T | 51277: is the engine build type number or engine order reference | U: is the country of manufacture, in this case UK | 618304: is the unique engine number | A: is the year of manufacture, in this case 1974 |
Engine Family & Type Code
A | Phaser/1004 Series | DK | 1103A-33T | 1104D Series | UF | 804C-33T | |
AA | 1004-4 | E | 4.108 Series | NH | 1104D-E44T | V | 1106C Series |
AB | 1004-4T | ED | 4.108 Series | NJ | 1104D-E44TA | VK | 1106C-E60TA |
AC | 1004-4T | G | 4.154/200 Series | NK | 1104D-44 | W | 1300 Series Peregrine |
AD | 1004E-4TW | GA | 4.154 | NL | 1104D-44T | WB | 1306-8T |
AE | Fed. CC | GB | 4.135 | NM | 1104D-44TA | WC | 1306-8TA |
AF | 1004-40S | GC | 4.182 | 1106D Series | WD | 1306-7T | |
AG | 1004-4 | GD | 4.25 | PJ | 1006D-E66TA | WE | 1306-7TA |
AH | 1004-4T | GE | 4.30 | R | 6.247 Series | WF | 1306-8T NGD |
New 1000 Series | H | 4.165 Series | RA | 6.247 | WG | 1306-8TA NGD | |
AJ | 1004-40 | HA | 4.165 | 1104C Series | WH | 1306-9T-NGD | |
AK | 1004-40T | 400 Series | RE | 1104C-44 | WJ | 1306-9TA-NGD | |
AL | 1004-40TA | HB | 402C-05 | RF | 1104C-E44 | 1300 Series EDI | |
AM | 1004-40T | HD | 403C-07 | RG | 1104C-44T | WK | 1306-E76T |
AP | 1004-40 | HH | 403C-11 | RH | 1104C-E44T | WL | 1306-E76TA |
AQ | 1004-40T | HL | 403C-15 | RJ | 1104C-44TA | WM | 1306-E87T |
AR | 1004-42 | HN | 404C-15 | RK | 1104C-E44TA | WN | 1306-E87TA |
AS | 1004-42 | HP | 404C-22 | 1104A Series | WP | 1306-E76T | |
AT | 1004-40TA | HR | 404C-22T | RR | 1104A-44 | WQ | 1306-E76TA |
B | Prima/500 Series | J | 4.203 | RS | 1104A-44T | WR | 1306-E87T |
BA | 504-2 | JD | 4.203 | SD | Sabre CC6.68 | WS | 1306-E87TA |
BB | 504-2T | JE | D4.203 | T | 6.354 Series | X | V8.540 Series |
C | 3.152 Series | JF | G4.203 | TC | 6.354 | XA | V8.510 |
CA | P3 | JG | 4.2032 | TD | H6.354 | XB | TV8.510 |
CB | 3.144 | K | Perama/100 Series | TE | T6.354 | XC | V8.540 |
CC | P3.144 | KD | 3 cylinder, 1.0 litre | TF | HT6.354 | XE | TV8.540 |
CD | 3.152 | KE | 3 cylinder, 1.5 litres | TG | 6.3541 | 1103D Series | |
CE | D3.152 | KF | 4 cylinder, 2.0 litres | TH | T6.3541 | XK | 1103D-33 |
CF | G3.152 | KH | 3 cylinder, 1.3 litres | TJ | 6.3542 | XL | 1103D-33T |
CG | P3.152 | KL | 3 cylinder, 0.7 litre | TK | C6.3542 | XM | 1103D-33TA |
CJ | 3.1522 | KN | 2 litre, 0.5 litre | TP | T6.3543 | Y | Phaser/1006 Series |
CM | 3.1524 | KR | 4 cylinder, 2.2 litres | TR | 6.372 | YA | 1006-6 |
CN | T3.1524 | KS | 3 cylinder, 1.1 litres | TT | TC6.3541 | YB | 1006-6T |
900 Series | L | 4.236 Series | TU | T6.3544 | YC | 1006-6T | |
CP | 903-27 | LA | 4.212 | TV | 6.3724 | YD | 1006E-6TW |
CR | 903-27T | LD | 4.236 | TW | 6.3544 | YE | Fed. CC |
CT | 903-27S | LE | G4.236 | TX | C6.3544 | YF | 1006-60S |
D | 1103C Series | LF | 4.248 | TY | H6.3544 | New 1000 Series | |
DC | 1103C-33 | LG | 4.2482 | TZ | HT6.3544 | YG | 1006-60 |
DD | 1103C-33T | LH | C4.236 | U | 700 Series | YH | 1006-60T |
1103B Series | LJ | T4.236 | UA | 704-30 | YJ | 1006-60TA | |
DF | 1103B-33 | LM | 4.41 | UB | 704.26 | YK | 1006-60TW |
DG | 1103B-33T | N | 4.318 Series | UC | 704.30 | Z | V8.640 Series |
1103A Series | NC | 4.318 | 800 Series | ZA | V8.640 | ||
DJ | 1103A-33 | ND | 4.3182 | UE | 804C-33 | ZB | TV8.640 |
Country Of Manufacture Code
A | Argentina | B | Brazil | C | Australia | D | Germany | E | Spain | F | France |
G | Greece | H | Group | HC | China | HM | Indonesia | HK | Iraq | HU | Uruguay |
J | Japan | K | Korea | L | Italy | M | Mexico | MX | Mexico | N | USA |
P | Poland | S | India | SA | South Africa | T | Turkey | U | United Kingdom | V | Pakistan |
W | Iran | X | Peru | Y | Yugoslavia |
Year Of Manufacture Code
A | 1974 | B | 1975 | C | 1976 | D | 1977 | E | 1978 | F | 1979 | G | 1980 | H | 1981 | J | 1982 | K | 1983 | L | 1984 |
M | 1985 | N | 1986 | P | 1987 | S | 1988 | T | 1989 | U | 1990 | V | 1991 | W | 1992 | X | 1993 | Y | 1994 | A | 1995 |
B | 1996 | C | 1997 | D | 1998 | E | 1/1-31/3/99 | F | 1/4-31/12/99 | G | 2000 | H | 2001 | J | 2002 | K | 2003 | L | 2004 |
Engine Type
A | Air to Air Charge Cooling | C | Compensated | CC | Charged Cooled | D | Direct Injection | E | Electronic | F | Federal Emissions | FF | Federal Emissions | G | Gasoline/Gas |
H | Horizontal | N | Narrow Front End | P | Timing Chain | S | Spark Ignition | T | Turbo Charged | U | Unhit Injection | V | V Form | W | Water To Air Charge Cooling |
