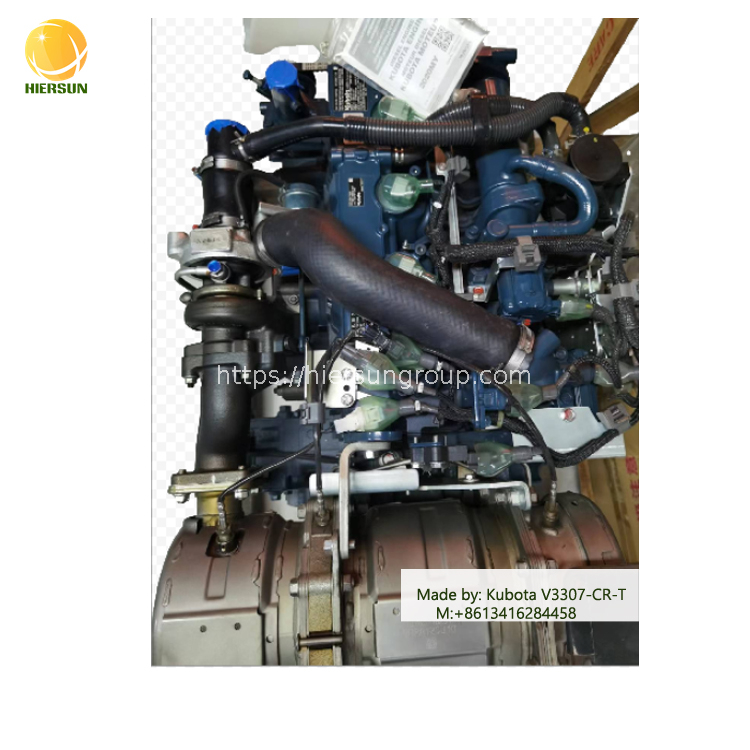

V3307-CR-T
Product Description |
Engine model
V3307-CR-T-E4B
Emission regulation
EPA/CARB Tier 4 + EU Stage IIIB
Type
Vertical, water cooled 4-cycle diesel engine
Cylinders
4
Bore and stroke
mm (in)
94.0 x 120.0 (3.70 x 4.724)
Displacement
L (cu.in)
3.331 (203.3)
Aspiration
Turbocharged
Aftertreatment
DOC + DPF
Rated output / speed*1
kW (HP) / rpm
55.4 (74.3) / 2600
Maximum torque / speed*1
Nm (lb-ft) / rpm
265.0 (195.5) / 1500
Combustion system
Direct injection
Fuel system
Common rail system
Length x Width x Height*2
(without aftertreatment unit)
mm (in)
655 x 561 x 752 (25.8 x 22.1 x 29.6)
Length x Width x Height*3
(with aftertreatment unit)
mm (in)
856 x 561 x 752 (33.7 x 22.1 x 29.6)
Dry weight
kg (lb)
305 (672)
Specifications are subject to change without notice.
DOC: Diesel Oxidation Catalyst
DPF: Diesel Particulate Filter
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on
