S6S
S6S

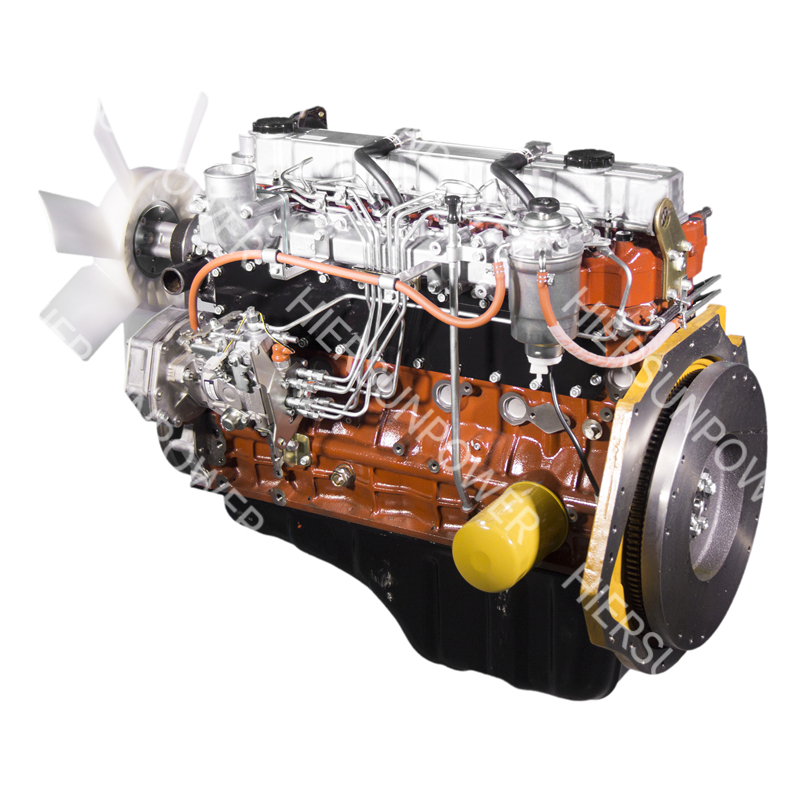

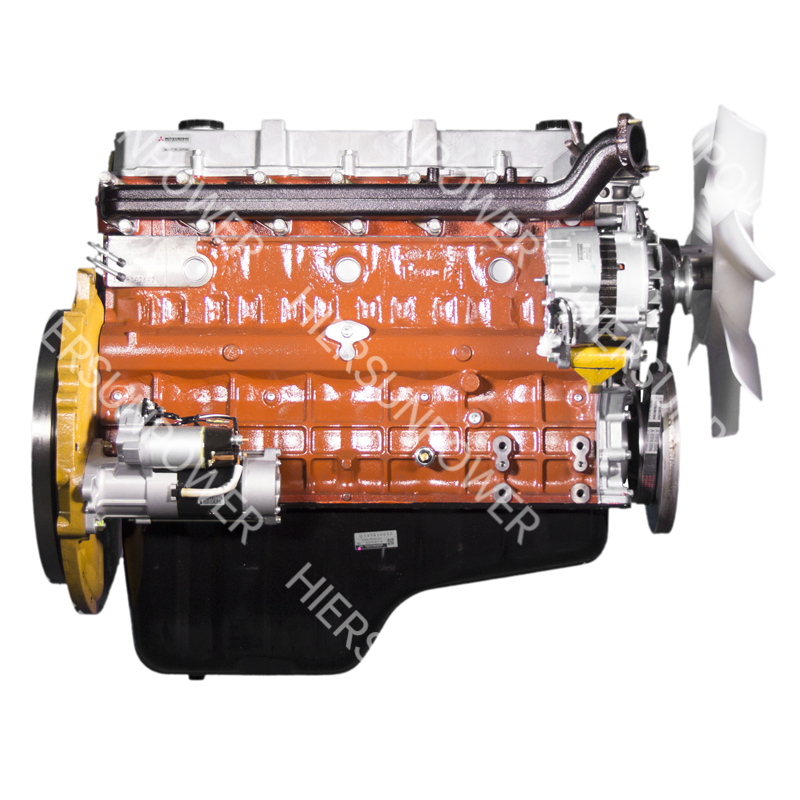

S6S engines belong to SS series. They received good reviews by worldwide customers due to low-noise and low-emission engines which are perfect qualities for urban areas.
This engine combines low noise and exhaust levels with excellent power capacity. Low noise and low exhaust are becoming increasingly important factors, especially for machines that operate in urban areas, particularly residential areas, during the night and indoors; this is the engine for urban work in the future. Clean emission.
S6S | ||
Type | 4-cycle water-cooled diesel engine | |
Aspiration | Natural-aspirated | |
Number of cylinders | 6 | |
Bore and stroke | mm | 94x120 |
Displacement | cc | 4496 |
Combustion system | In-Direct Injection | |
Maximum gross output | kW/min-1 | 52KW 2300Rpm |
Fuel /Fuel system | Diesel fuel (ASTM No.2-D) / Distributor Type | |
Charging alternator | V-A | 12-50 |
Starting system | V-kW | 12-3.0 |
Engine oil capacity | liter | 12.5 |
Dry weight(1500/1800 min-1.spec) | kg | 345 |
Flywheel | SAE#11.5 | |
Flywheel Housing | SAE #3 | |
