Diesel engine Fuel Filter Base - Remove and Install - Perkins engines

Views: 197     Author: Site Editor     Publish Time: 2022-04-29      Origin: Site


Diesel engine Fuel Filter Base - Remove and Install ( Take example from model perkins 400D 402D-05 and 403D-07 Engines)


Removal Procedure


_________________________________________________

NOTICE

Do not allow dirt to enter the fuel system. Thoroughly clean the area around a fuel system component that will be disconnected. Fit a suitable cover over discon-

nected fuel system component.

_________________________________________________

NOTICE

Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product.

Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Dispose of all fluids according to local regulations and mandates.

_______________________________________________________

NOTICE

Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

_______________________________________________________

Note: Place identification marks on all hoses for installation purposes. Plug all hoses and all the ports in the fuel filter base. This helps prevent fluid loss,

and this helps to keep contaminants from entering the system.

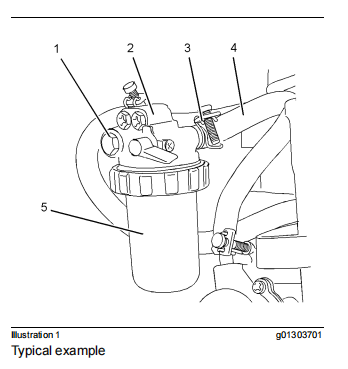

fuel filter

1.Tum the fuel supply to the OFF position.

2. Loosen hose clamps (3) and disconnect hoses (4).

3. If necessary, remove fuel fiter element (5). Refer

to Operations and Maintenance Manual,“Fuel

System Filter - Replace".

4. Remove bolt (1) and remove fuel filter base (2)

from the mounting bracket.

Installation Procedure

NOTICE

Keep all parts clean from contaminants.

Contaminants may cause rapid wear and shortened

component life.

1. Ensure that the fuel filter base is dean and free

from damage. If necessary, replace the fuel filter

base.
