Diesel Generator Operation Manual Control System Part 11

 Password Menu

When viewing the Adjust submenu, pressing either the + or - button will display the Password menu (Figure 11-1) if a User password is assigned to this field. After entering the correct password, the system will allow you to modify the submenu. To prevent unauthorised adjustment, the entered password is valid for only ten minutes after the last button is pressed.

Note:   Application Password is intended only for competent service personnel to allow adjustment of Set-up submenu parameters.

To enter the password:

1.Display Adjust submenu.

2.Press either the + or - button within the displayed submenu. The Password menu appears.

        (Adjustment is allowed if Password menu does not appear).

3.Press the + and - button to select the first character of the User password (A-Z or 0-9).

4.Press the ® button to select the next character field. Selected character field is highlighted.

5.Repeat steps 3 and 4 to enter remaining password characters.

6.Press the Enter button after entering the password. The Adjust submenu will re-appear.

7.Exit Adjust submenu to save changes.

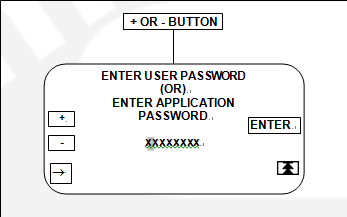

Figure 11-1Password Menu
