Advance J300 Gearbox For Marine Diesel Engine Reduction ratio 2.04 2.54 3.0 3.47 3.95

Marine Gearbox J300 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight, and convenient in dis- and reassembly and maintenance.
Availability:
Quantity:
  • J300 Marine Gearbox Reduction ratio 2.04 2.54 3.0 3.47 3.95

  • Advanced

Advance J300 Gearbox For Marine Diesel Engine Reduction ratio 2.04,2.54,3.0,3.47,3.95



 Product Description



HC-series Marine Gearbox

HC-series marine gearbox self-developed by the company is of power ranging 10kW~3000kW, ratio ranging 1.5~20:1, complete in specifications, high market share, widely used in heavy loaded ships such as transport, fishing and engineering boats. Product design and manufacturing capability are in leading nationally and advanced internationally level.

Description

Marine Gearbox J300 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight, and convenient in dis- and reassembly and maintenance.


Main data

Input speed 750-2500r/min
Reduction ratio 2.04,2.54,3.0,3.47 Trans. capacity 0.280kw/r/min
3.95 0.257kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 60KN
Center distance 264mm
L×W×H 786×930×864mm
Net weight 740kg
Flywheel 12V135,12V150,SAE18,16,14
Bell housing 12V135,12V150,SAE0,1




Application

Marine Gearbox J300 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight, and convenient in dis- and reassembly and maintenance.

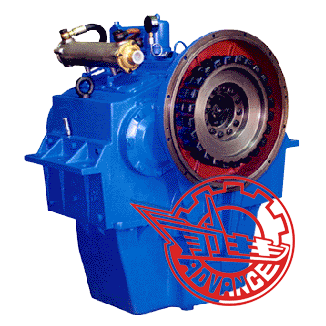

Advance J300 Gearbox For Marine Diesel Engine  Reduction ratio 2.04,2.54,3.0,3.47,3.95 (photo for reference only)
