Advance GWK49.54 Gearbox For Marine Diesel Engine

GWK-series marine gearbox is designed of one-stage speed reduction, input and output being vertically offset and rotating in contrary direction, possessing functions of clutching & de-clutching and speed reduction. It features in compact in structure, small in volume and smooth in operation.
Availability:
Quantity:
  • GWK49.54 Marine Gearbox

  • Advanced

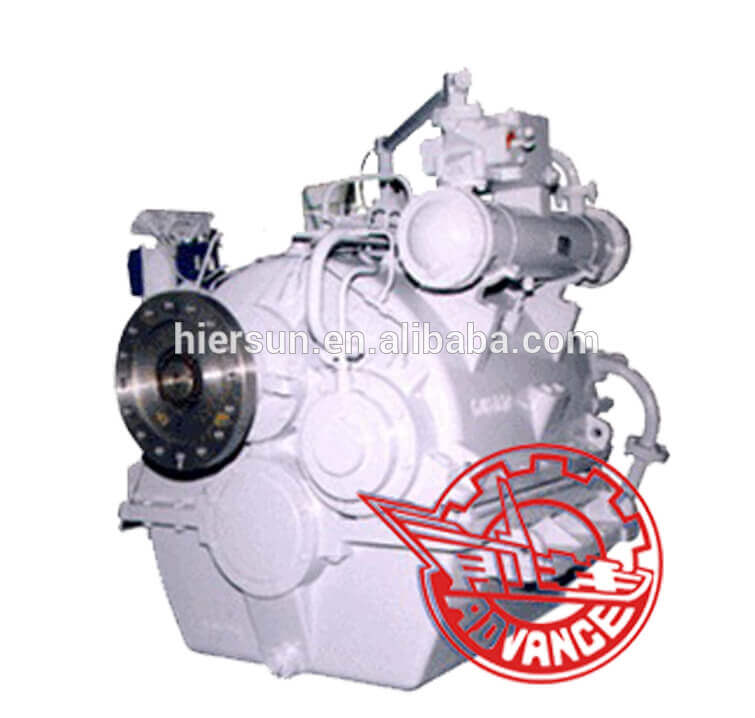

Advance GWK49.54 Gearbox For Marine Diesel Engine



 Product Description



GW-series Marine Gearbox

GW-series marine gearbox is developed with the introduced technology from LOHMANN Company (German), including GWC, GWD, GWS, GWH, GWL and GWK six series, in which GWC as the basic type. These series are complete in specifications, high market share, and widely used in large ships such as transport, engineering, and fishing boats.

Description

GWK-series marine gearbox is designed of one-stage speed reduction, input and output being vertically offset and rotating in contrary direction, possessing functions of clutching & de-clutching and speed reduction. It features in compact in structure, small in volume and smooth in operation.


Main data



Model Input Speed(r/min) Reduction Ratio(i) Trans. Capacity(kW/r·min-1) Rated Thrust(kN) Net Weight(kg)
GWK49.54 400-1200 1.9714 2.647 284 7300
2.4667
3
3.5217
3.9524


Application



GWK-series marine gearbox is widely used in transport, engineering and fishery boats.



Advance GWC28.30 Gearbox For Marine Diesel Engine   (photo for reference only)

Advance GWK49.54 Gearbox For Marine Diesel Engine
